SPECIFICATIONS
AI Functions: Other
Choice: yes
Color: WHITE
Color Night Vision: No
Connectivity: Closed System/CCTV Wired
Dimensions (L x W x D)(mm): 14.3cm*6.8cm
High Definition: 1080P(Full-HD)
High-concerned chemical: None
IP Rating: IP66
IR Distance(m): 18m
Installation: Wall Mounted
Internal Storage: None
Lens (mm): 3.6mm
Lens Quantity: Single Lens
Megapixels: 2 MP
Minimum Illumination(Lux): 1/2.5
Model Number: JN-08D-AHD
Movement Range(Pan): -10°-180°
Movement Range(Tilt): -10°-180°
Operating Temperature: -10°-60°
Power Consumption(W): 2W
Power Mode: Mains Electricity
Power Supply: Normal
Power Supply(V): DC12V
Scene: Indoor and outdoor
Shell Material: Plastic
Special Features: Waterproof / Weatherproof
Style: Bullet Camera
Supported Operating Systems: No
TF Card: None
Video Compression Format: H.264,H.265
Viewing Angle : 75°
Whether or Not 50Vac or 75Vdc or Higher Power Supply: No
Zoom: None
Zoom type: None
is_customized: Yes

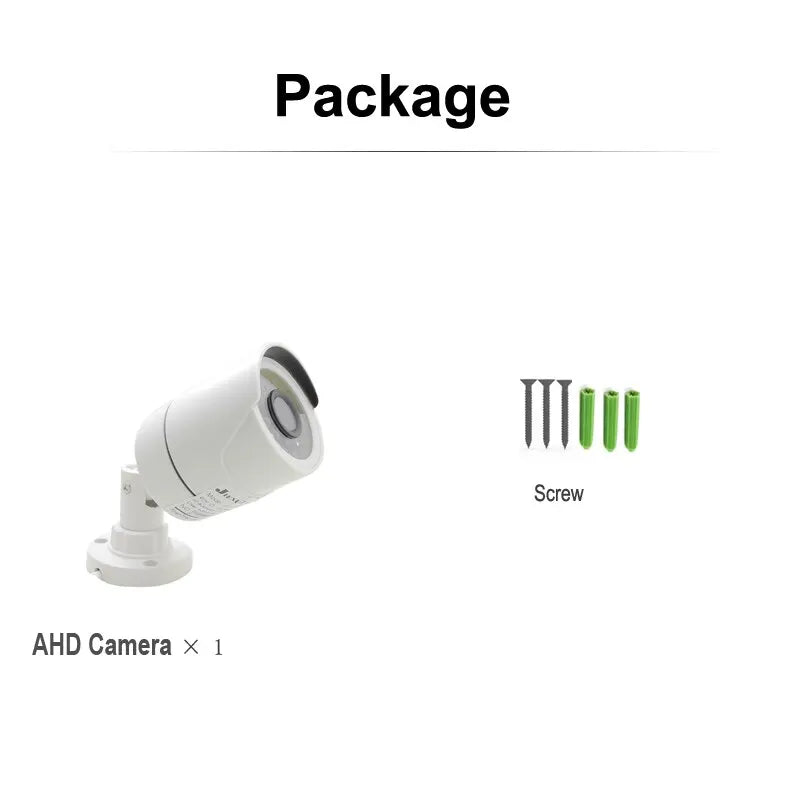

The Order Packing does not include a power adapter, you can use the DC 12V 1A/2A power adapter.
Description:

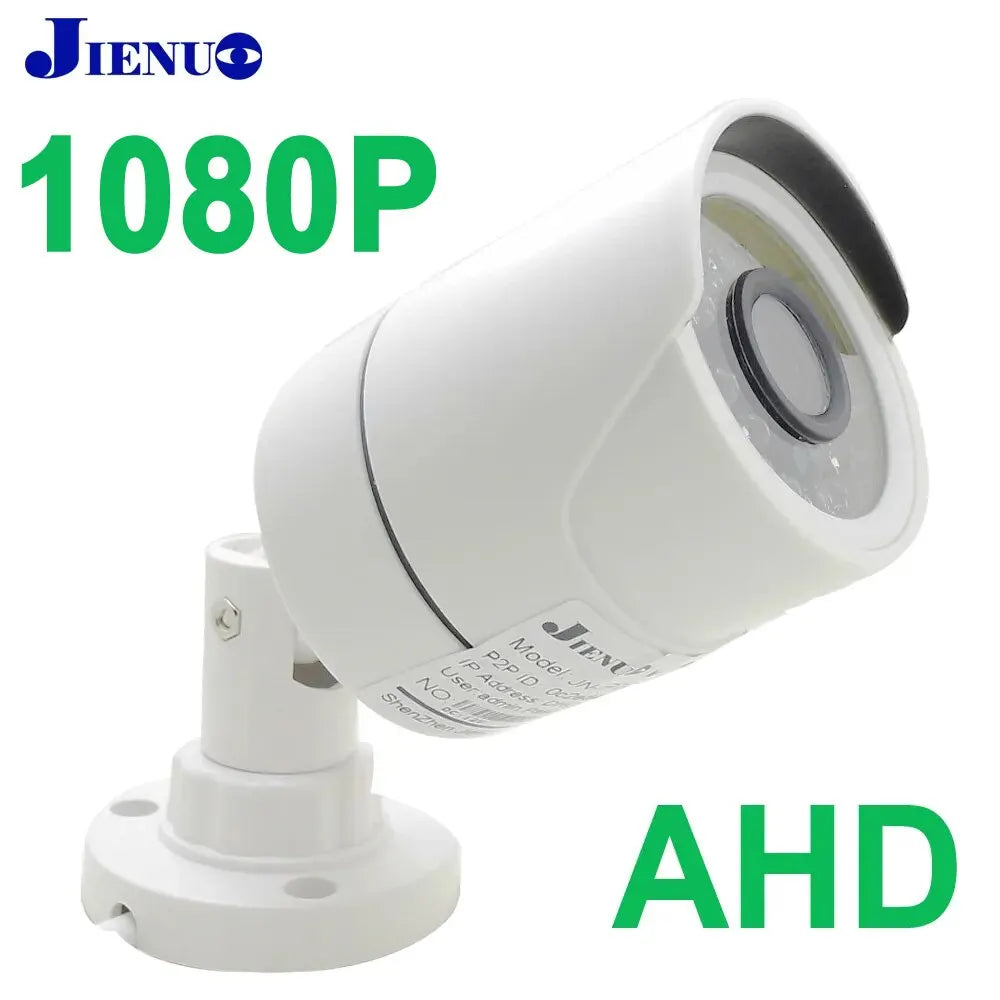

AHD Camera Analog Surveillance Infrared Night Vision
CCTV security home indoor outdoor bullet full HD cameras
AHD Analog High Definition Surveillance Infrared Camera
Why AHD
As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?
Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
1080P
1.HD camera
2.Resolution : 1080P

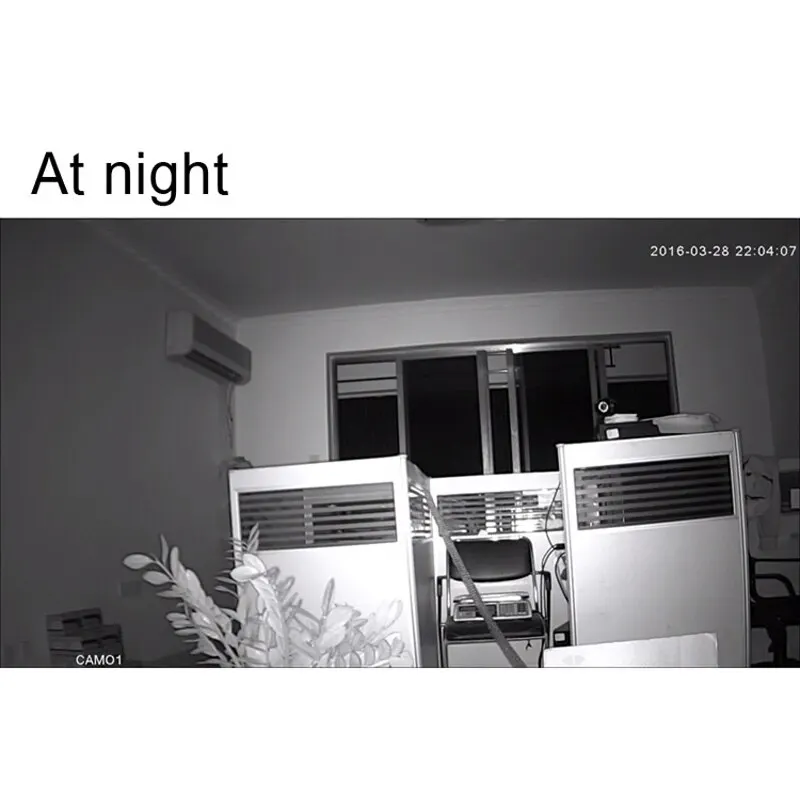

3.24PCS IR LEDS with 5-25M IR Distance

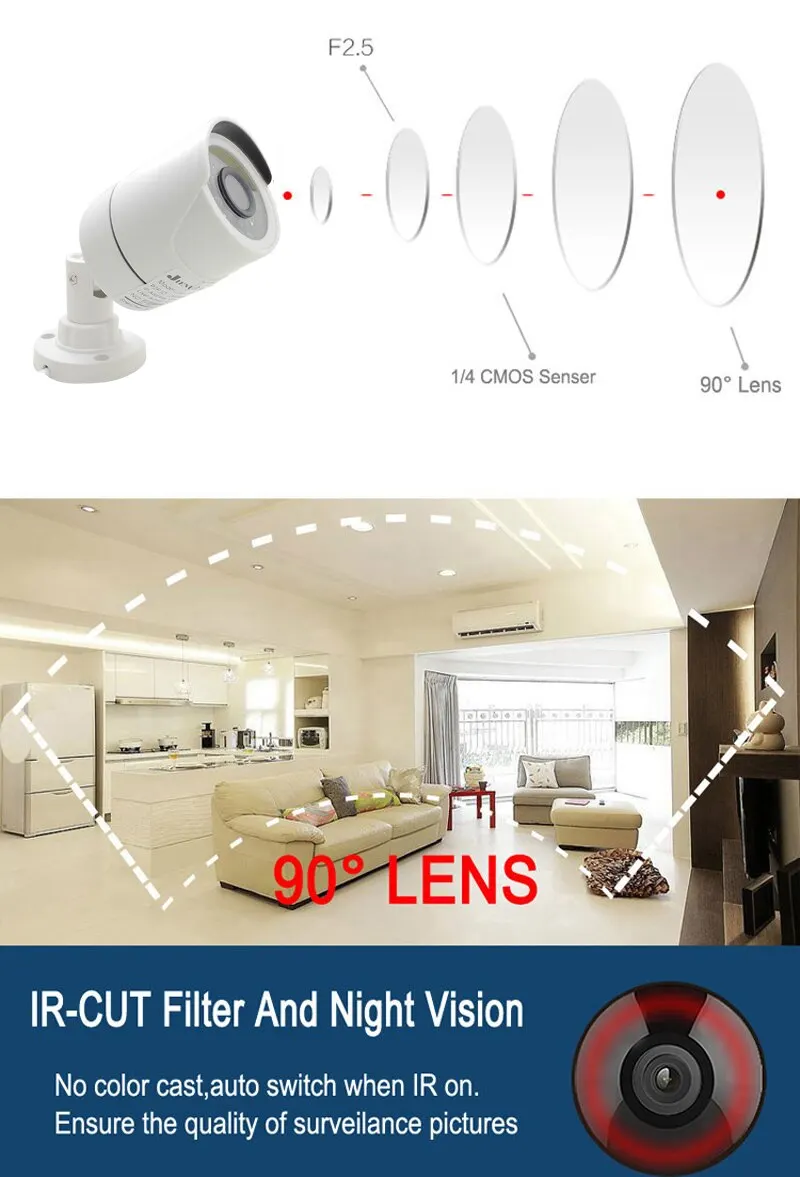

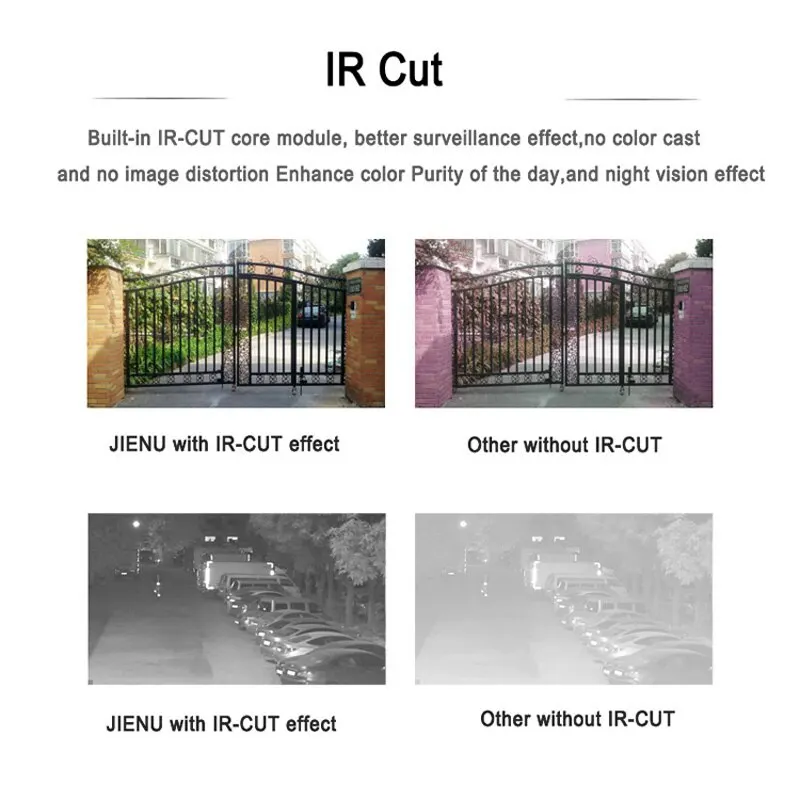

4. Built in IR-CUT Filter, Day & Night Vision

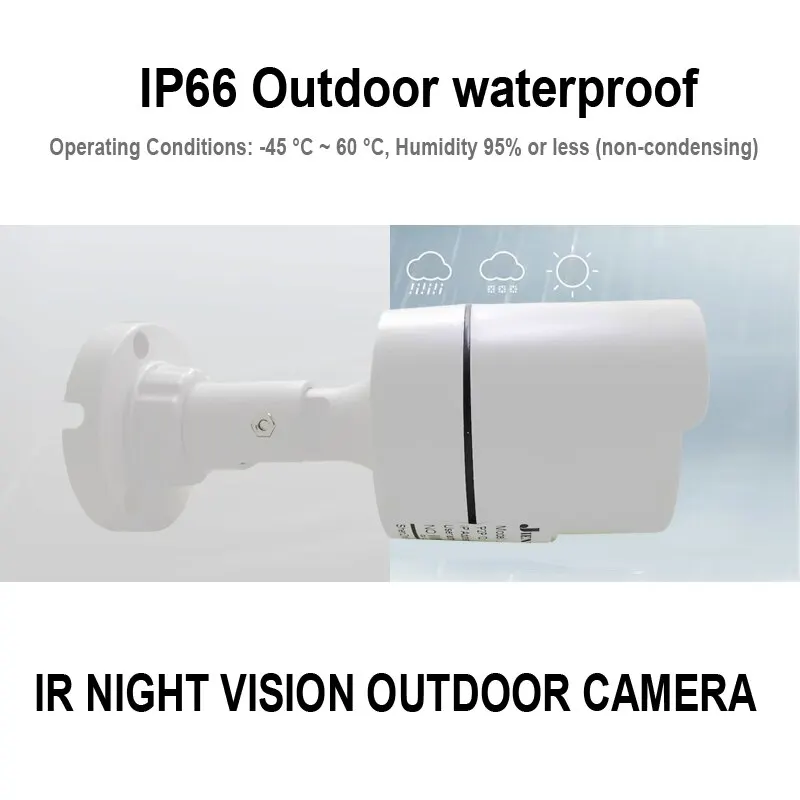

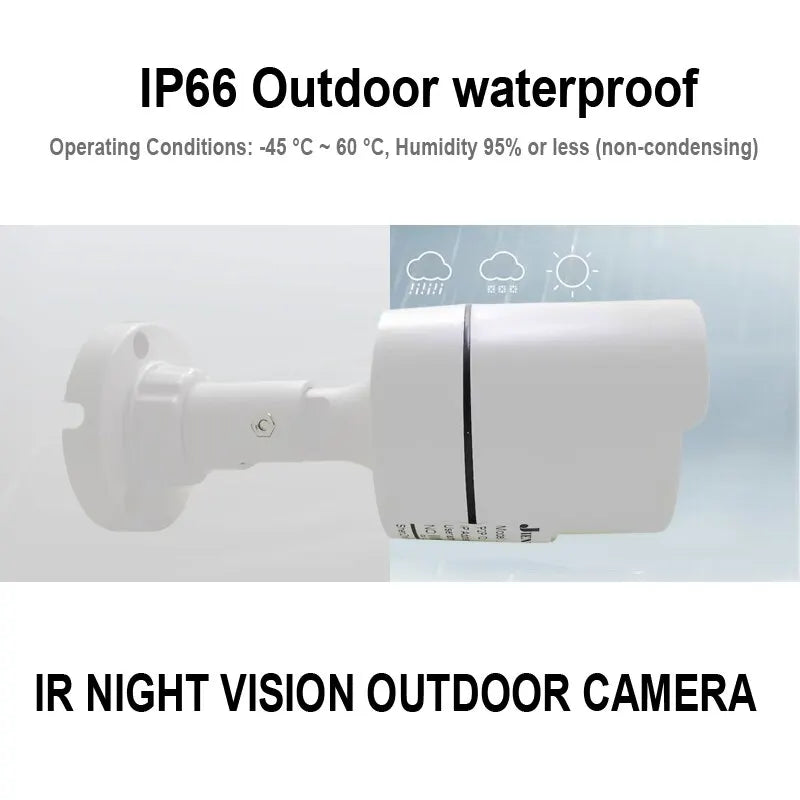

5. High Quality ABS Plastic Case, Used Indoor/Outdoor, Waterproof IP66
6. Standard lens: HD 3.6mm Lens.
7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.
8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.
9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.

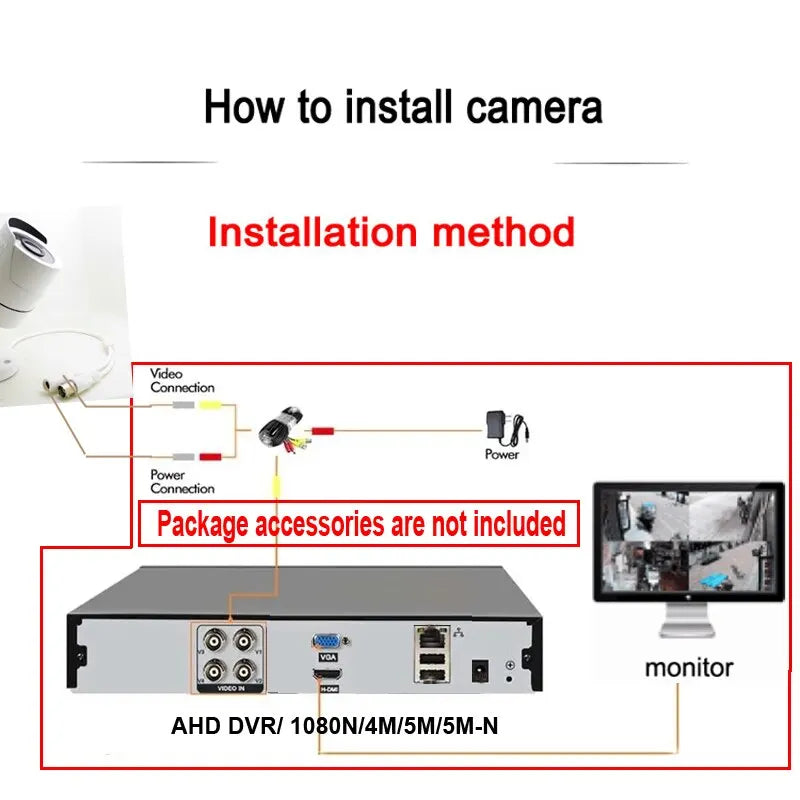

10. MUST work with AHD DVR
11. Best choice for project reconstruction.
12. You can upgrade an old analog security system to HD cameras without changing cable routes.

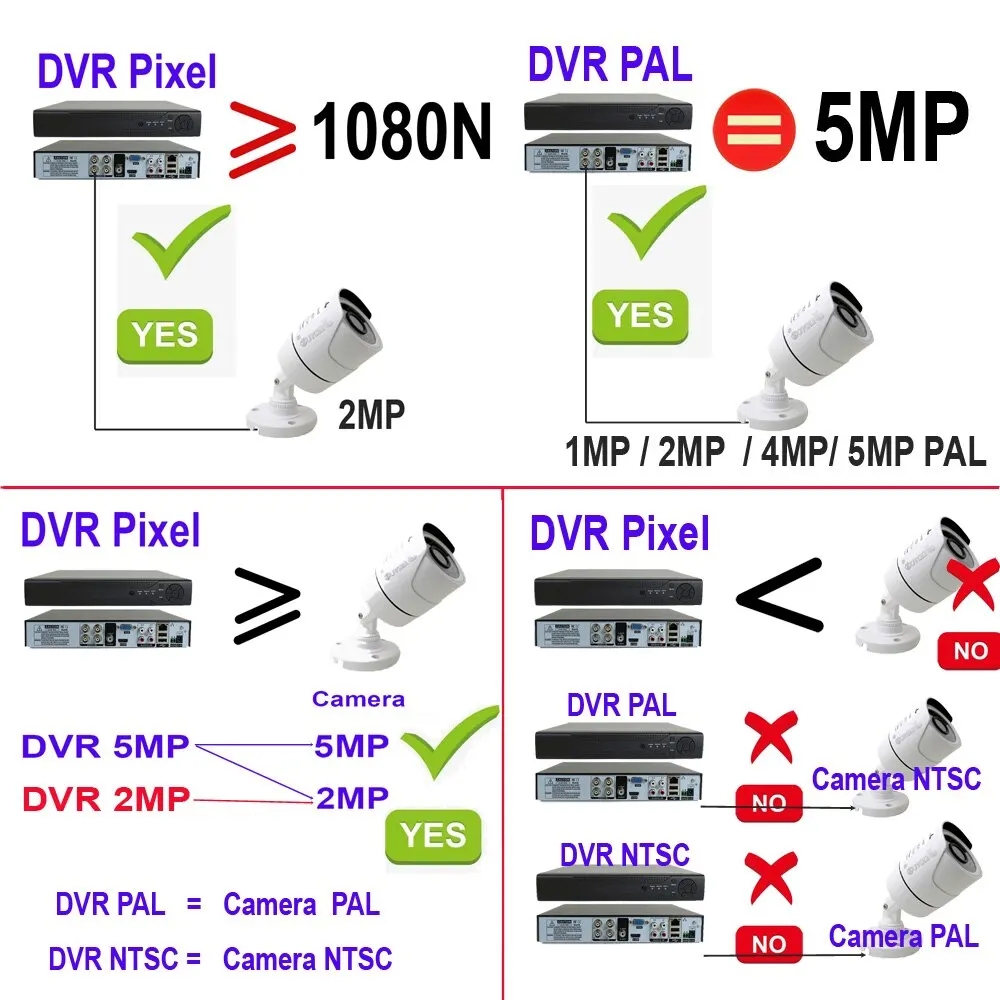

***P.S: Before ordering, please confirm that you have a DVR that supports AHD. Normal DVR does not support AHD cameras.
Video capture card does not support AHD camera, does not support direct connection to TV and monitor
When ordering, please confirm the camera system you need, such as PAL or NTSC, which is very important.
Some AHD DVRs support changing the camera format, such as: XM AHD DVR, you can change it in the menu.
1080P: digital signal, video resolution: 1920*1080, does not support TV connection by default, does not support analog DVR connection by default, supports entering Camera menu setting (XVI control entering menu) through AHD DVR, (note) supports connecting to AHD DVR list ( 1080N/1080P/4MP/5M-N/5MP/4K)
